REFRIGERANT GASES

Oxygases Brand Refrigerant Gases

Oxygases, Ras Al Khaimah, UAE – is an importer and supplier of refrigerant gases under the brand “OxyGases” to HVACR industry, Mobile Air Conditioning, Refrigeration, and Air Conditioning market. They offer a wide range of products like fluorocarbon refrigerants including CFCs, HFCs, HCFCs, & HFO. Also supplies environmentally friendly natural refrigerants.

“Oxygases” brand refrigerants are well known in the HVAC market for their better performance, lower global warming potential, and reduced environmental impact.

Generations of Refrigerants

Since innovation during the 1830s, Ether, CO₂, Ammonia, and Sulphur Dioxide were part of the “First Generation” of refrigerants.

“Second Generation” during the 1930s saw the introduction of H₂O, NH₃, Hydrocarbons, etc., followed by CFC and HCFC.

“Third Generation” introduced in the 1950s with improved versions of HFC, HCFC, CO₂, H₂O, and NH₃. Soon after, in 1987, the “Montreal Protocol” to safeguard the ozone layer was implemented.

“Kyoto Protocol” was an international treaty that extended the 1992 United Nations Framework Convention on Climate Change, committing state parties to reduce greenhouse gas emissions, based on scientific consensus that global warming is occurring and that human-made CO₂ emissions are driving it.

“Fourth Generation”, introduced in 2010, observed a massive change in the refrigeration industry with the introduction of HFOs along with improved HCs, HFCs, CO₂, and Ammonia.

Extensive research continues in this domain, with the goal of achieving lower ozone depletion.

Applications:

• Light Duty Vehicles Refrigeration
• Medium and Heavy Vehicles
• Retail Food Refrigeration
• Industrial Refrigeration
• Food Transport Refrigeration
• Preserving Medical Samples, Specimens and Pharmaceuticals
• Heat Pumps
• Residential AC Systems
• Commercial Air Conditioning
• Chillers

Banned > Stop-gap Solution > Being Phased Out > …… > Long Term Solutions

CFCs (Chloro Fluoro Carbon)

CFCs refer to the chemical composition of the refrigerant. Chloro Fluoro Carbon indicates the content as Chlorine, Fluorine, and Carbon. Any blend of refrigerant with CFC as content is considered a CFC refrigerant.

Examples: R11 | R12 | R500 | R502

HFCs (Hydro Fluoro Carbon)

HFCs are the chemical composition of the refrigerant, namely Hydro Fluoro Carbon. It consists of Hydrogen, Fluorine, and Carbon. Any blend that contains HFC is addressed as HFCs.

Examples: R23 | R32 | R134a | R404A | R407a | R407c | R407f | R410a | R417c | R422B | R422D | R507 | R508B

HCFCs (Hydro Chloro Fluoro Carbon)

Known as Hydro Chloro Fluoro Carbon, it contains Hydrogen, Chlorine, Fluorine, and Carbon. A blend that contains HFCs and HCFCs is considered an HCFC refrigerant.

Examples: R22 | R123 | R124 | R401A | R401B | R402A | R402B | R403B | R408A | R409A

HFOs (Hydro Fluoro Olefin)

HFO refers to the chemical composition of Hydro Fluoro Olefin. It contains Hydrogen, Fluorine, and Carbon, with at least one unsaturated double bond between two carbons (olefin structure). A blend of HFO with another type of refrigerant is typically combined with a slash (Example: HFC / HFO).

Examples: R1233zd | R1234ze | R1234yf | R448A | R513A | R449A | R450A | R452A

Natural Refrigerants

Hydrocarbons are naturally occurring chemicals made only from Hydrogen and Carbon. A blend of hydrocarbon with any other type of refrigerant would be considered the other type of refrigerant (CFC, HFC, HCFC, or HFO).

Examples: R717 (Ammonia) | R744 (CO₂) | R1270 (Propylene) | R290 (Propane) | R600a (Isobutane)

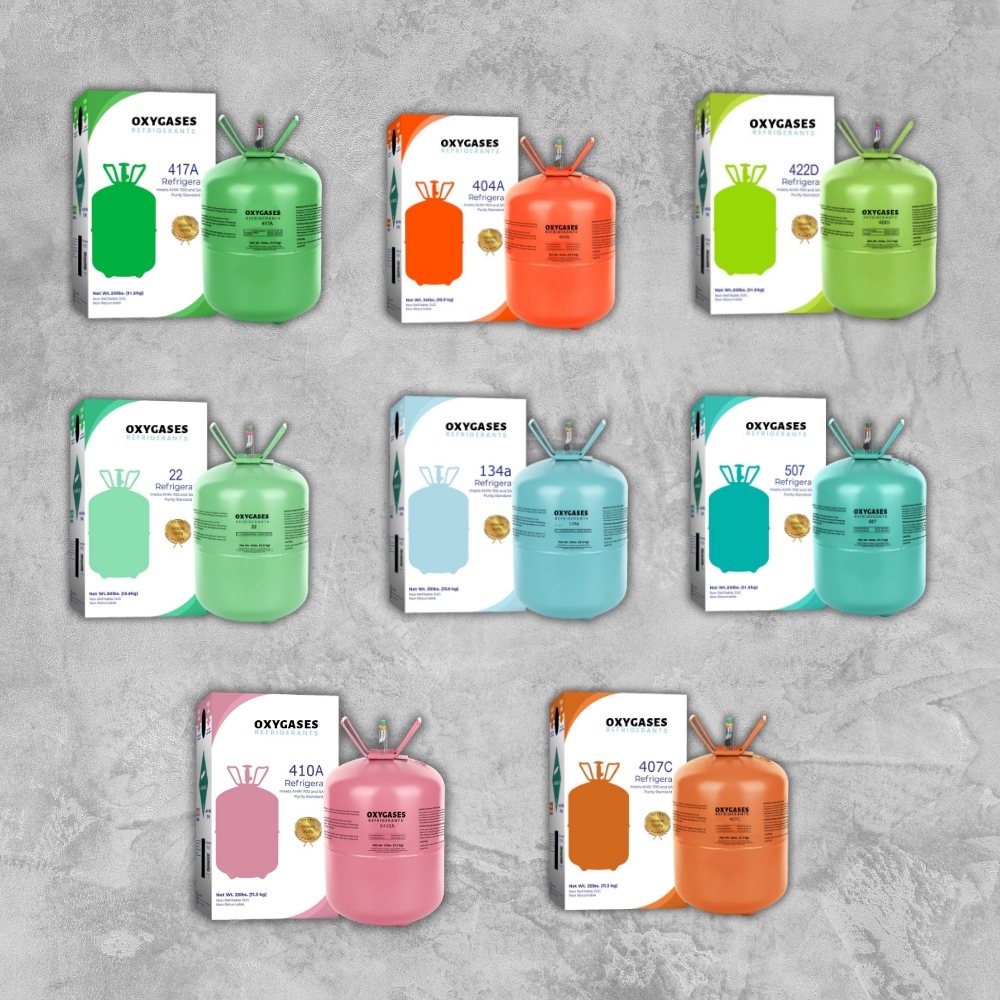

Products

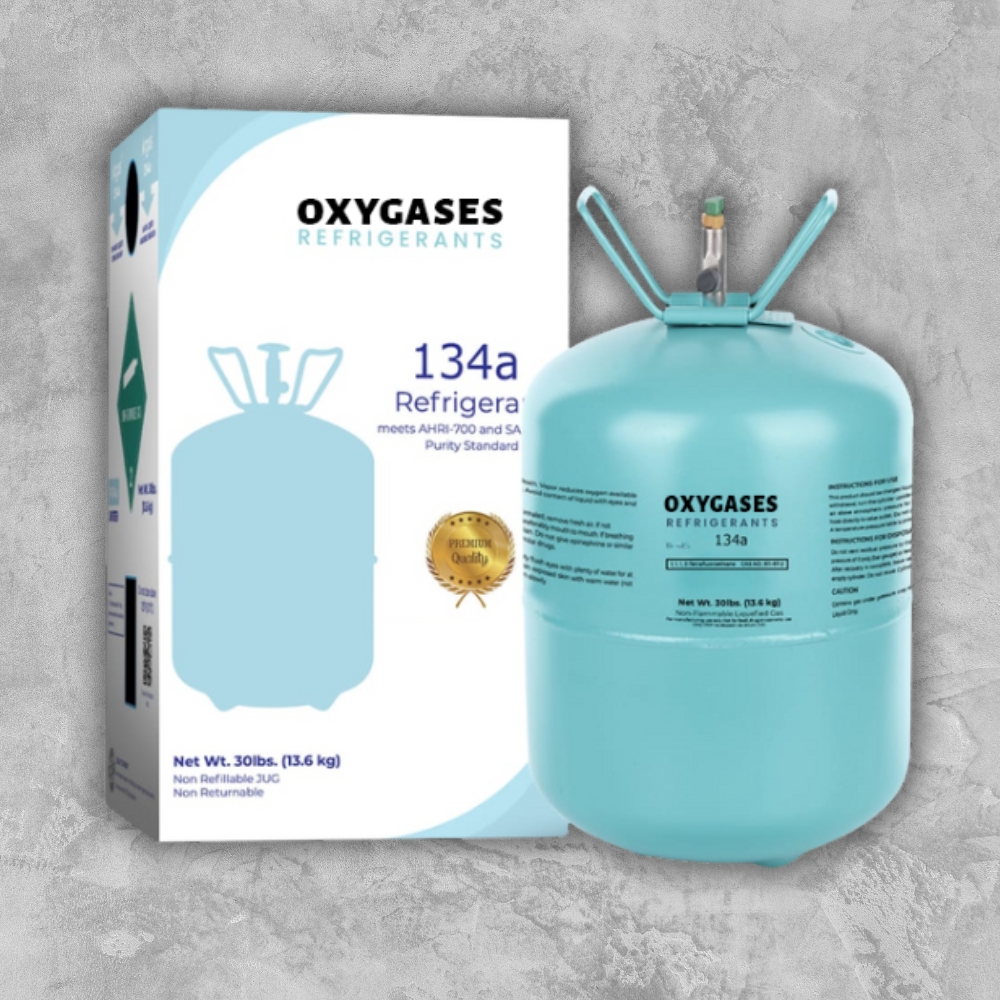

Oxygases R 134a

(1, 1, 1, 2 - Tetra Fluoro Ethane)

Product Information

Widely used in household appliances by manufacturers. Small self-contained refrigeration units, very large chillers, and automotive air conditioning. It is also being used as the heat transfer fluid in secondary loop systems. R134a is a component in many refrigerant blends on the market, including the new lower GWP blends.

Applications

• Medium Temperature Refrigerators
• Automotive Air Conditioning

Replacement

Replacement for R12

Packaging

Part Number	Packaging
30R134a	13.6kg / 30LB disposable cylinder
125R134a	56kg / 125LB Returnable Cylinder
950R134a	950kg / Returnable Tonner

---

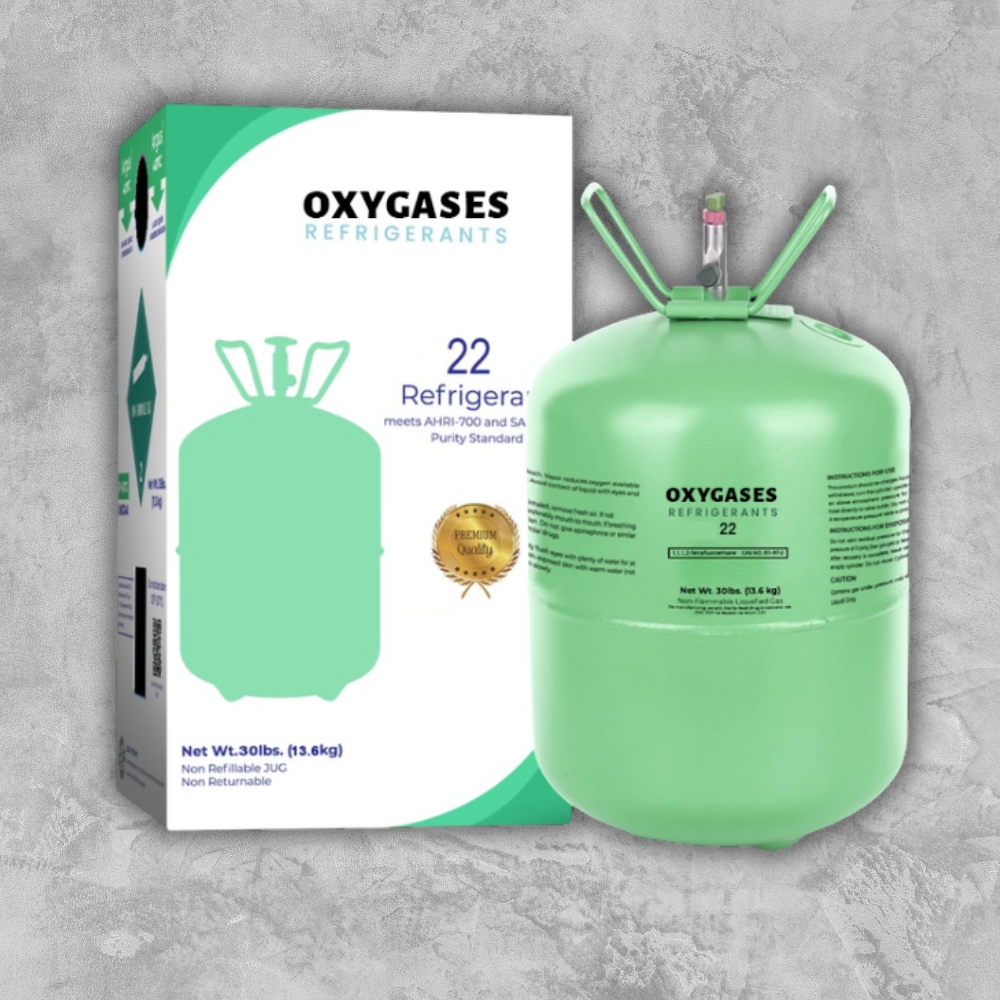

Oxygases R22

(Chloro Di Fluoro Methane)

Product Information

Predominantly used in residential and commercial installed systems. Used in very large centrifugal chillers for industrial process cooling. R22 cannot be used in new equipment at manufacturing level, but can be used to service existing systems. It is widely used since the phase-out of CFCs as refrigerant as well as in blends.

Applications

• Low Temperature Refrigeration Systems
• Medium Temperature Refrigeration Systems
• Air Condition Systems

Packaging

Part Number	Packaging
30R22	13.6kg / 30LB disposable cylinder
125R22	56kg / 125LB Returnable Cylinder
900R22	900kg / Returnable Tonner

---

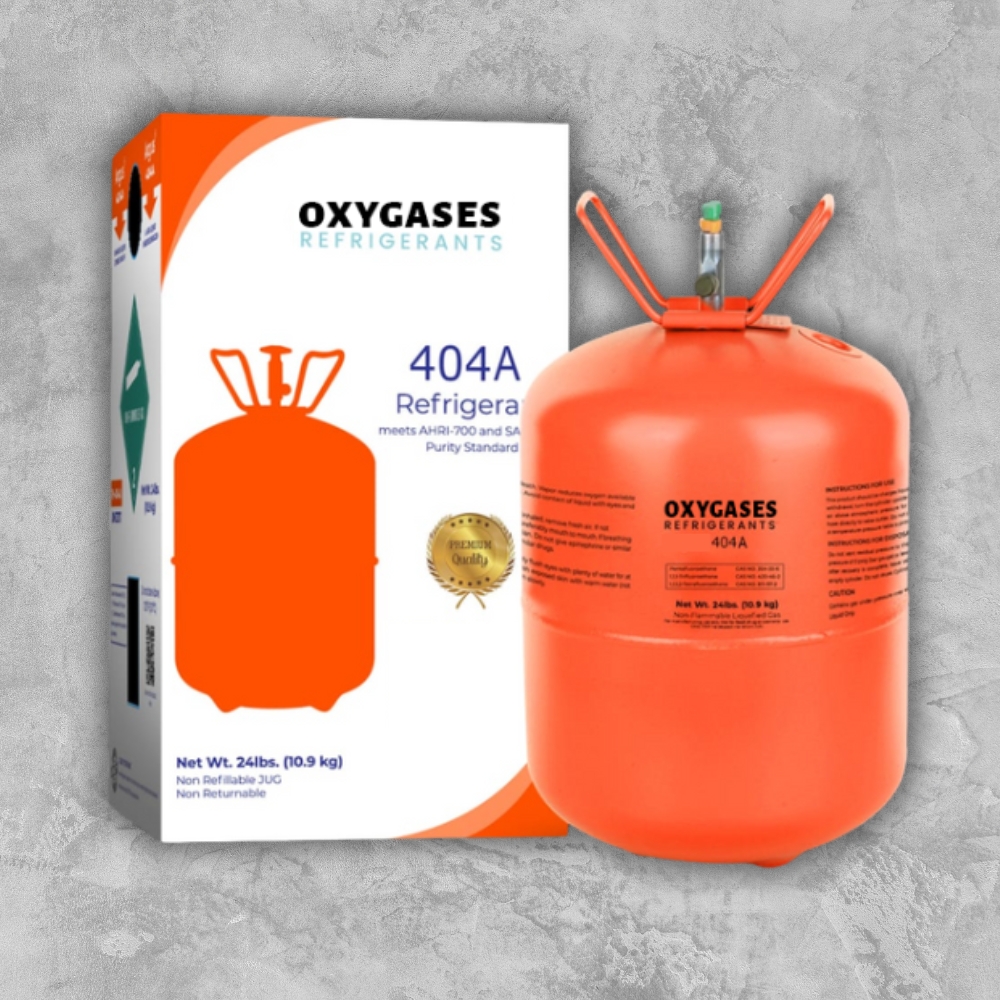

Oxygases R404a

(Penta Fluro Ethane HFC-125)

(1, 1, 1 - TrifluroEthane HFC-143a)

(1, 1, 1, 2 - TetrafluroEthane HFC-134a)

Product Information

Widely used in low and medium temperature refrigeration. This blend is used in commercial and industrial low/medium temperature refrigeration. R-507 can also be used if any system is specified for R404a. POE lubricant is required.

Applications

• Low temperature refrigeration systems
• Medium temperature refrigeration systems

Replacement

For 502 Refrigerants

Packaging

Part Number	Packaging
24R404A	10.9kg / 24LB disposable cylinder
100R404A	45kg / 100LB Returnable Cylinder
750R22	750kg / 1653LB Returnable Tonner

---

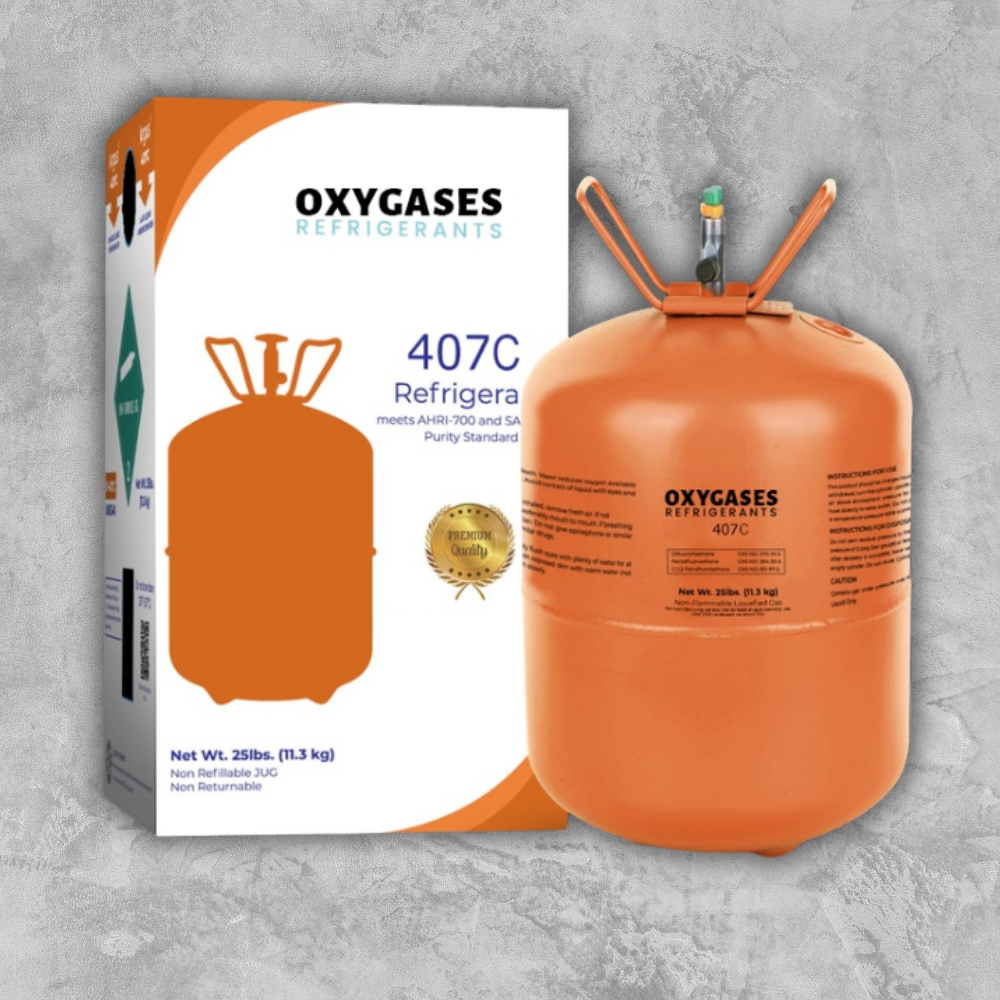

Oxygases R407c

• Di Fluro Methane HFC -32
• Pentafluroethane HFC -125
• (1, 1, 1, 2 - TetrafluroEthane HFC -134a)

Product Information

R407c has properties similar to R22 in air conditioning and in medium temperature refrigeration. Operating pressure / temperature in the evaporator, run time capacity, and flow characteristics through tubing and valves make this blend the closest property match to R-22 for retrofitting at AC conditions.

Application

• Air Conditions
• Low temperature refrigeration systems
• Medium temperature refrigeration systems

Replacement

For R22 Refrigerants

Packaging

Part Number	Packaging
25R407c	11.3kg / 25LB Disposable Cylinder
115R407c	52kg / 115LB Returnable Cylinder
850R407c	850kg / 1875LB Returnable Tonner

---

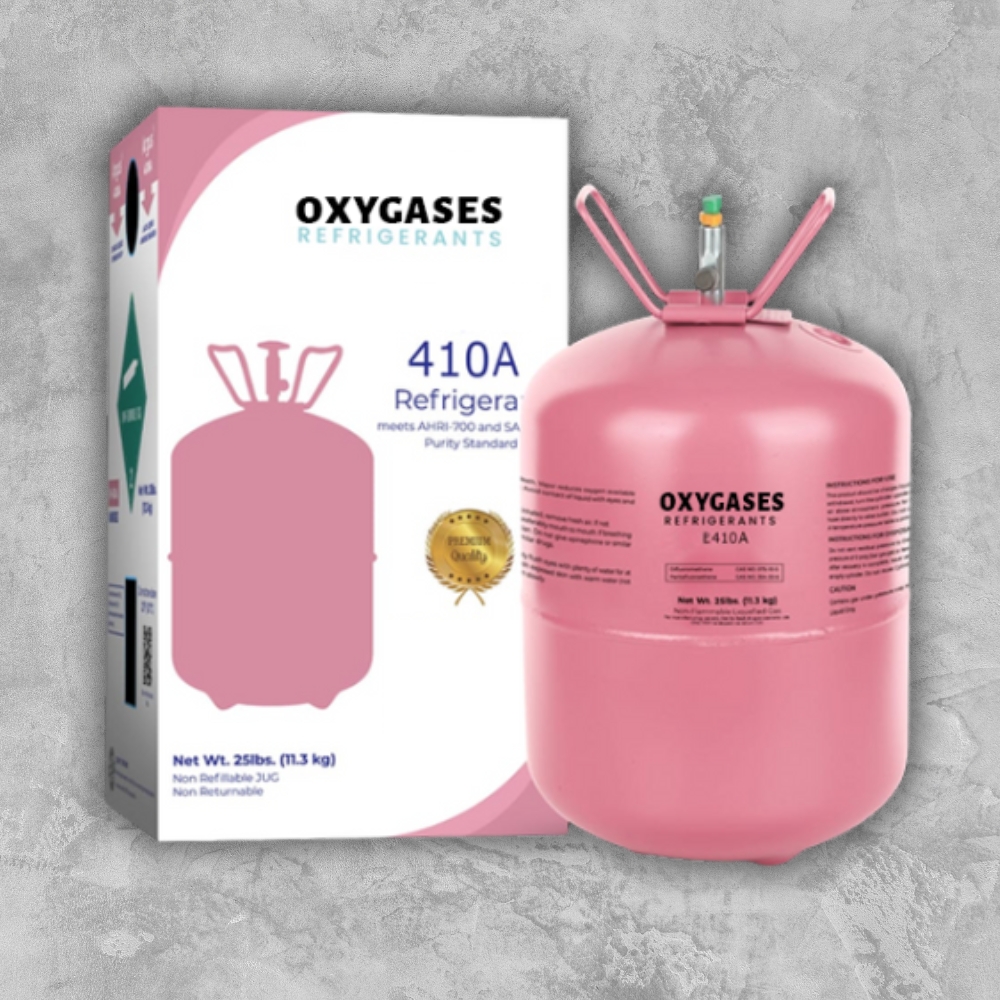

Oxygases R410a

• PentaFluroEthane HFC -125
• 1, 1, 1 - TriFluroEthane HFC -143a
• 1, 1, 1, 2 - TetraFluroEthane HFC -134a

Product Information

R410a is used in new air conditioning and heat pump equipment. The components nearly form an azeotrope, which means it has extremely low temperature glide and almost no fractional potential.

Oxygases R410a has 60% higher pressure than R22 in air conditioning applications, and is only allowed to be used in new equipment specifically designed to handle high pressure.

Systems designed for R410a will have smaller heat exchangers, compressors, etc., to perform the same cooling job compared to R22. POE lubricant required.

Application:

• Air Condition

Replacement:

For R22 Refrigerants

Packaging:

Part Number	Packaging
25R410a	11.3kg / 25LB Disposable Cylinder
100R410a	45kg / 100 LB Returnable Cylinder
750R410a	750kg / 1653 LB Returnable Tonner

---

Oxygases R507

• PentaFluroEthane – HFC-125
• 1, 1, 1 – TriFluroEthane – HFC-143a

Product Information

Used in low and medium temperature refrigeration. It can be used in any system specified to use R404a. R507 has been accepted by OEMs as an alternative choice for R404a for commercial and industrial low temperature refrigeration. POE lubricant is required.

Application :

• Low temperature refrigeration systems
• Medium temperature refrigeration systems

Replacement

For R502 Refrigerants

Packaging

Part Number	Packaging
25R507	11.3kg / 25LB Disposable Cylinder
100R507	45kg / 100 LB Returnable Cylinder
750R507	750kg / 1653 LB Returnable Tonner

---

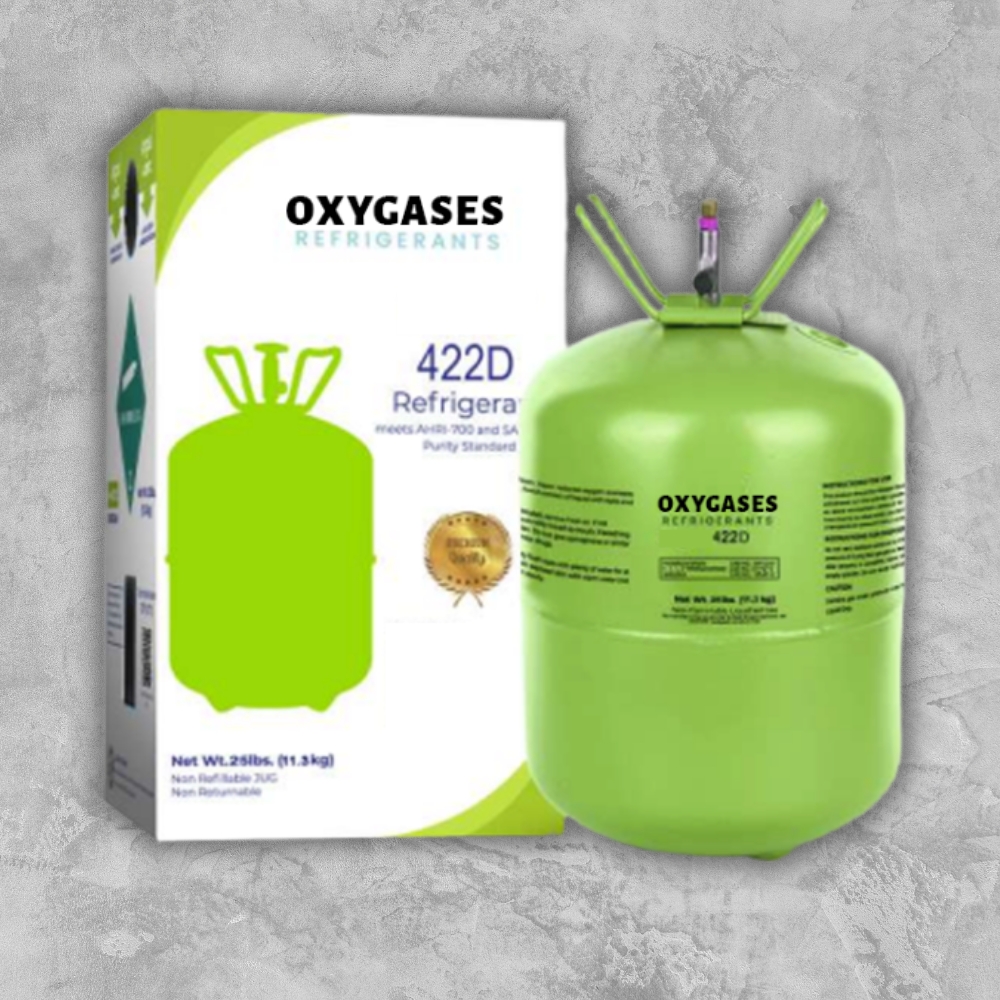

Oxygases R422D

• PentaFluroEthane – HFC-125
• 1,1,1 - TriFluroEthane – HFC-143a
• Isobutane – R600a

Product Information

A retrofit blend that is designed to match R22 refrigeration applications. There is a reduction in capacity which would result in longer run times. There may also be excessive pressure drop in long piping runs which may limit capacity further. The hydrocarbon component in R422D helps promote oil return in systems containing mineral oil or alkyl benzene.

Application:

• Low temperature refrigeration systems
• Medium temperature refrigeration systems

Replacement:

For R22 Refrigerants

Packaging:

Part Number	Packaging
25R422D	11.3kg / 25LB Disposable Cylinder
110R422D	45kg / 110LB Returnable Cylinder

---

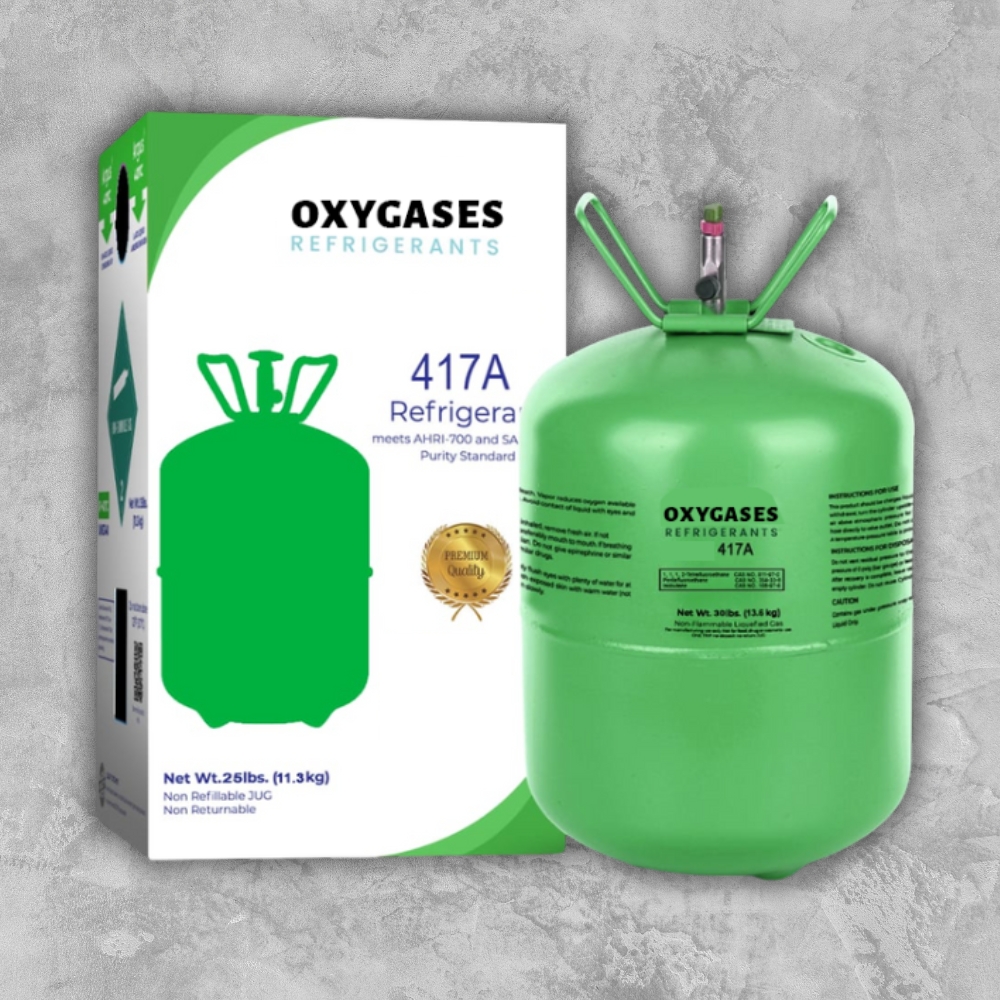

Oxygases R417a

• 1, 1, 1, 2 - TetraFluoroEthane (HFC-134a)
• PentaFluoroEthane (HFC-125)
• Isobutane (R600a)

Product Information

Oxygases R417a is an HFC retrofit for R22 direct expansion stationary air conditioning systems and medium temperature commercial refrigeration systems. This second-generation blend contains a hydrocarbon additive and therefore can be used with existing mineral oil or alkyl benzene.

Application:

• Low temperature refrigeration systems
• Medium temperature refrigeration systems

Replacement

For R22 Refrigerants

Packaging

Part Number	Packaging
25R417a	11.3kg / 25LB Disposable Cylinder
750R417a	750kg Returnable Tonner

---
